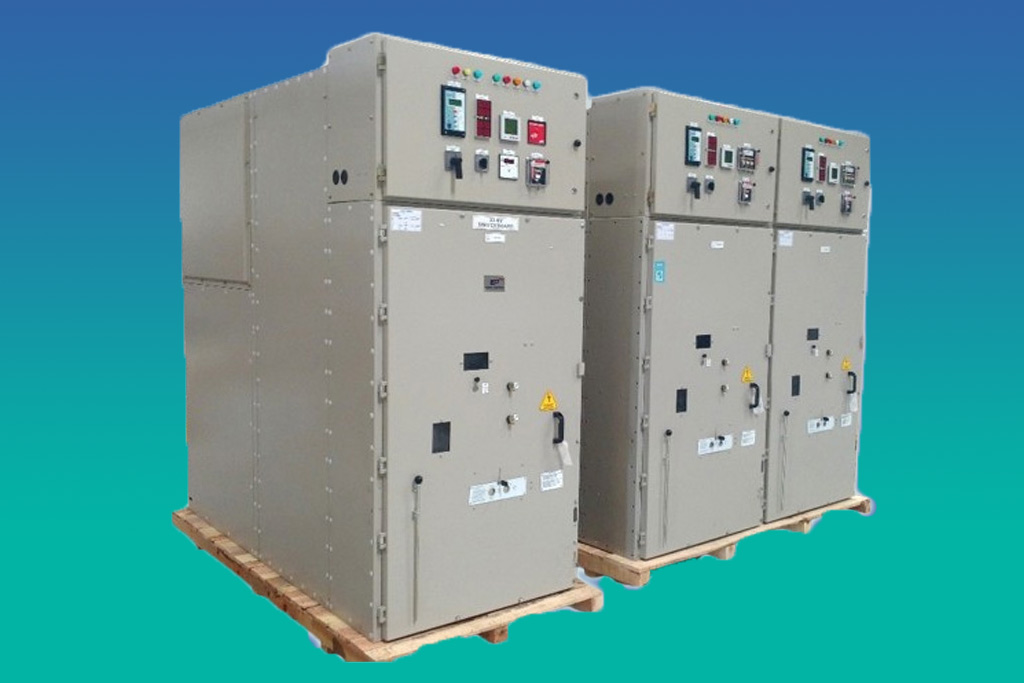

3.3/6.6/11/22/33 KV VCB PANELS with Siemens make VCBs

Key Features

-All panels manufactured under license from Siemens India & as per IEC 62271-100 with internal arc

-Available for both Indoor & Outdoor application & extensible on both side.

-Most Compact design in its class.

-Range

• 11KV Upto1600A-26.3KA, up to 2500A-31.5KA & up to 3150A-40KA
• 22/33KV 1250 A-26.3/31.5KA

 – Maintenance free new generation interrupters from Siemens.

– VCB mounted on withdrawabale truck so separate maintenance trolley not reqd.

– Automatic safety shutter for isolation of live parts.

• Epoxy encapsulated feeder connection for better safety

– All switching operations are performed with breaker compartment closed for highest safety of personnel operating the switchgear.

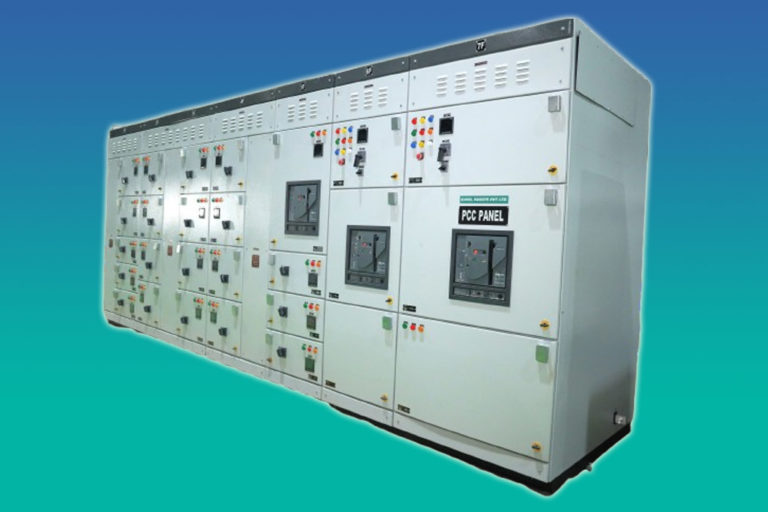

PCC/MCC/I-MCC/BUS DUCT/APFC/ACDB/DCDB PANELS

• Full customization in dimension as well as scheme is possible.
• Type tested for 70KA short circuit, temp. rise,IP 54 & HV at CPRI
• Testing of panel with high end numerical kits like Omicron/Doble/ISA & expert engineers.
• Available with Siemens/Schneider/L & T/ABB make switchgear.
• Ranging from 630 A to 6300A with Copper & Aluminium bus bars.
• In house fabrication facility with high end AMADA make turret punching machine.
• Drawout MCC.

11 KV SIEMENS MAKE RING MAIN UNITS

Ratings up to 12kV, 630A, 21kA 3s STC

Internal arc classification IAC A FLR 20kA 0.1s [21kA 1.0s     available on request]

• Factory-assembled, type-tested, metal-enclosed switchgear     according to IEC 62271-200
• Blocks consisting up to 5 feeders in a single tank
• Capacitive voltage detection system for verification of safe isolation from supply.
• All switching operations and cable access from the front.
• Safe to touch and hermitically sealed, gas tight, welded stainless steel primary enclosure, independent of environmental effects (dust, moisture, vermins etc.).
• Extensible on either sides.
• Manual as well as motorized application with & without FPIs
• Protective self-powered relay & current transformers for transformer protection.
•  Ex stock availability for standard configuration.
