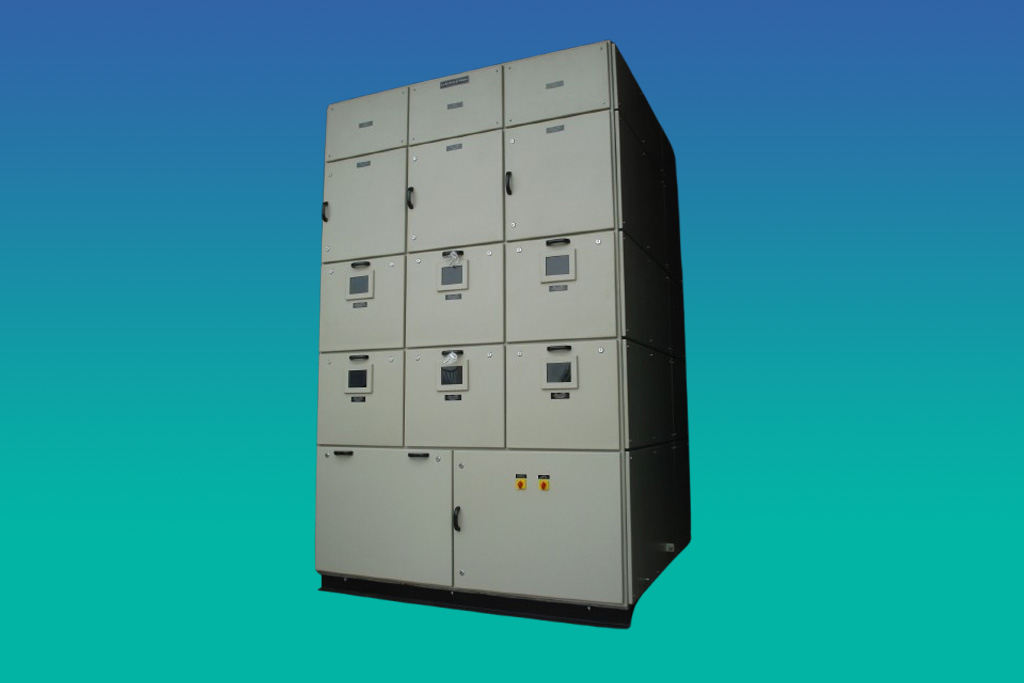

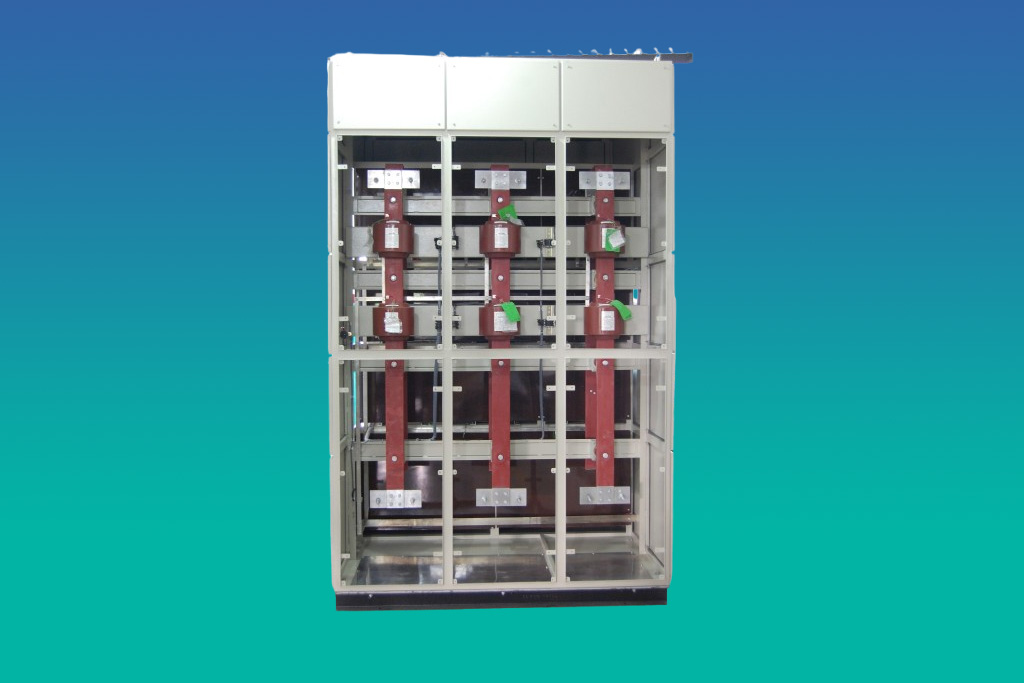

Lighting Arrestor & Voltage Transformer (LAVT) Panel
LIGHTING ARRESTOR & VOLTAGE TRANSFORMER (LAVT) PANEL
Our Lightning Arrestor & Voltage Transformer (LAVT) Panel is specifically designed to protect electrical systems from transient over voltages while ensuring accurate voltage measurement. Built according to client requirements, this panel integrates advanced lightning protection technologies with high quality voltage transformers, providing reliable performance in various applications.
SPECIFICATION AND FEATURES
- Control & relay panels with various schemes up to 220KV
- Generator protection & metering panel for various ratings
- Synchronizing panels with auto & manual mode of operation
- LCC panel for EHV GIS
- With Rittal/self-manufactured CRC enclosures
- Type tested for IP54/IP55 at ERDA
- Testing of panel with high-end numerical kits like Omicron/Doble/ISA & expert engineers
- Full customization in dimension as well as scheme is possible
- Available with Siemens/ABB/Schneider/GE make relays
- Simplex, Duplex & Swing frame enclosures
MEDIUM VOLTAGE PANELS : 3.3KV UPTO 33KV AIS
EXPEL PROSYS’S Medium Voltage AIS Panels up to 33KV are manufactured in accordance with IEC 62271 with best in segment Siemens VCBs. EPPL is one of the largest System House of Siemens for MV panel across India due to high quality, detailed engineering and prompt after sales services.
SPECIFICATION AND FEATURES
- Switchboards are manufactured under license from Siemens India & as per IEC 62271 with internal arc
- Available for both Indoor & Outdoor application & extensible on both sides.
- Most Compact design in its class.
-
Range:
• 11KV,1250A,1600A,2000A,2500A,3150A with short circuit rating of 26.3,31.5 & 40KA
• 22/33KV,1250,2500A with short circuit rating of 26.3 & 31.5KA. - Maintenance free new generation interrupters from Siemens.
- VCB mounted on withdrawable truck so separate maintenance trolley not reqd.
- Automatic safety shutter for isolation of live parts.
- Epoxy encapsulated feeder connection for better safety
- All switching operations are performed with breaker compartment closed for the highest safety of personnel operating the switchgear.
DOUBLE BUS PANEL UP TO 11KV
Our DOUBLE BUS Medium Voltage Panels range from 3.3kV to 11kV and are engineered to meet the specific requirements of our clients. These panes are unique and we are the only manufacturer of this panel across INDIA with Siemens VCBs. All panels are compliant to IEC 62271 standard
