Medium Voltage Panels

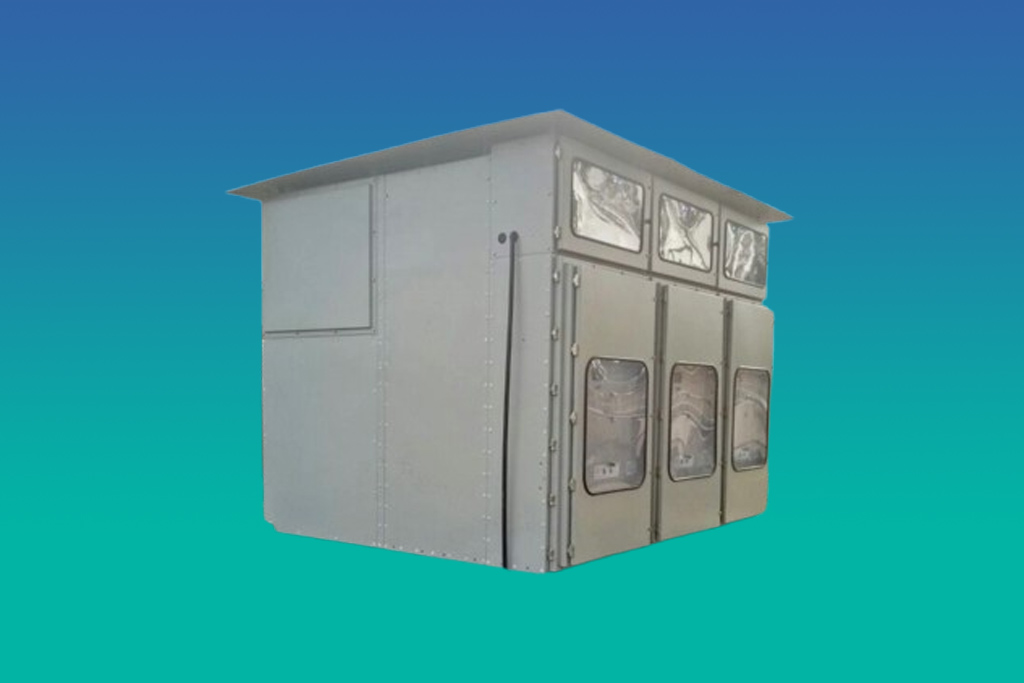

MEDIUM VOLTAGE PANELS : 3.3KV UPTO 33KV AIS
EXPEL PROSYS’S Medium Voltage AIS Panels up to 33KV are manufactured in accordance with IEC 62271 with best in segment Siemens VCBs. EPPL is one of the largest System House of Siemens for MV panel across India due to high quality, detailed engineering and prompt after sales services.
SPECIFICATION AND FEATURES
- Switchboards are manufactured under license from Siemens India & as per IEC 62271 with internal arc
- Available for both Indoor & Outdoor application & extensible on both sides.
- Most Compact design in its class.
-
Range:
• 11KV,1250A,1600A,2000A,2500A,3150A with short circuit rating of 26.3,31.5 & 40KA
• 22/33KV,1250,2500A with short circuit rating of 26.3 & 31.5KA. - Maintenance free new generation interrupters from Siemens.
- VCB mounted on withdrawable truck so separate maintenance trolley not reqd.
- Automatic safety shutter for isolation of live parts.
- Epoxy encapsulated feeder connection for better safety
- All switching operations are performed with breaker compartment closed for the highest safety of personnel operating the switchgear.
MEDIUM VOLTAGE PANELS :
3.3KV TO 33KV AIS
EXPEL PROSYS offers Medium Voltage AIS Panels up to 33kV, designed and built to meet IEC 62271 standards and integrated with premium Siemens Vacuum Circuit Breakers (VCBs). As one of the leading Siemens System Houses for medium voltage panels in India, EPPL stands out for its superior product quality, meticulous engineering, and dependable after sales support.
SPECIFICATION AND FEATURES
- Switchboards are manufactured under license from Siemens India & as per IEC 62271 with internal arc.
- Available for both Indoor & Outdoor application & extensible on both sides.
- Most Compact design in its class.
-
Range:
• 11KV,1250A,1600A,2000A,2500A,3150A with short circuit rating of 26.3,31.5 & 40KA.
• 22/33KV,1250,2500A with short circuit rating of 26.3 & 31.5KA. - Maintenance free new generation interrupters from Siemens.
- VCB mounted on withdrawable truck so separate maintenance trolley not reqd.
- Automatic safety shutter for isolation of live parts.
- Epoxy encapsulated feeder connection for better safety.
- All switching operations are performed with breaker compartment closed for the highest safety of personnel operating the switchgear.
DOUBLE BUS PANEL UPTO 11KV
Our DOUBLE BUS Medium Voltage Panels range from 3.3kV to 11kV and are engineered to meet the specific requirements of our clients. These panes are unique and we are the only manufacturer of this panel across INDIA with Siemens VCBs. All panels are compliant to IEC 62271 standard.
SIEMENS 11KV RING MAIN UNIT
Our Siemens 11kV Ring Main Unit (RMU) is designed to provide reliable and efficient power distribution for medium voltage applications. Engineered to meet client specifications, this unit features a compact design with a robust construction that ensures optimal performance in various environmental conditions. With advanced safety features and high fault current ratings, the RMU facilitates seamless operation and maintenance, making it an ideal choice for urban and industrial settings.
